1" Double Character / Dual Direction Arrows

Top and Bottom Stacked Arrow Orientation / Vertical Board / Micro Comm Segmented PI

MSV21

1" Double Character / Dual Direction Arrows

Top and Bottom Stacked Arrow Orientation / Vertical Board / Micro Comm Segmented PI

SKU: MSV21

Digits Colors Available
Arrows Colors Available

Qty:

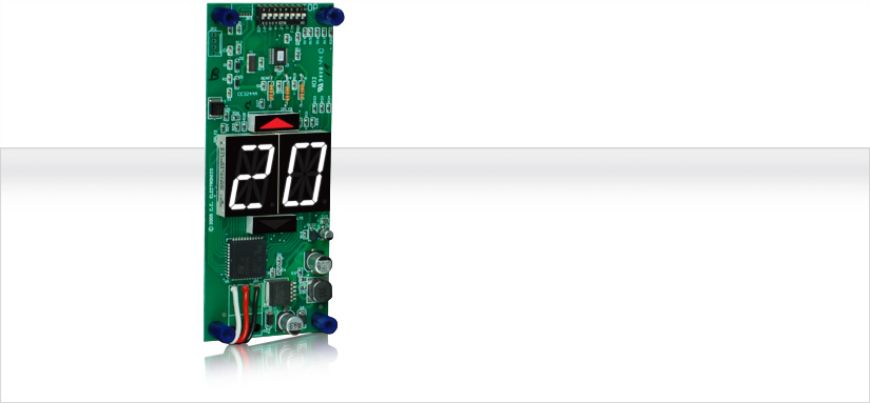

Segmented LED, digital indicator for floor position display, as well as car direction. Any alphanumeric character can be displayed in either single or double digit floor designations.

Documentation:

Catalog Page
Wiring Diagram General

Typical Applications:

> Car-OP Panel
> Transom-car or Hall
> Surface mount fixtures

Features:

> Fast, 3-wire hookup
> Latched inputs
> Cross wire protected
> Self-testing
> Alternate message
> Passing chime option by request only
> Error detection and correction feature

Dimensions:

> 2.25"W x 5.50"H x .625"D | 1" CHARACTER

Notes:

1. This is not a stand-alone unit. Must be used in conjunction with a MICRO COMM interface.
2. Can't have Red Lens with a non-red display.
