1.5” Double Character / Dual Arrow

Blue Liquid Crystal Segmented Display
OB215
Otis Segmented PI;
Speak to a Rep Speak to a Rep
Find Specs Find Specs

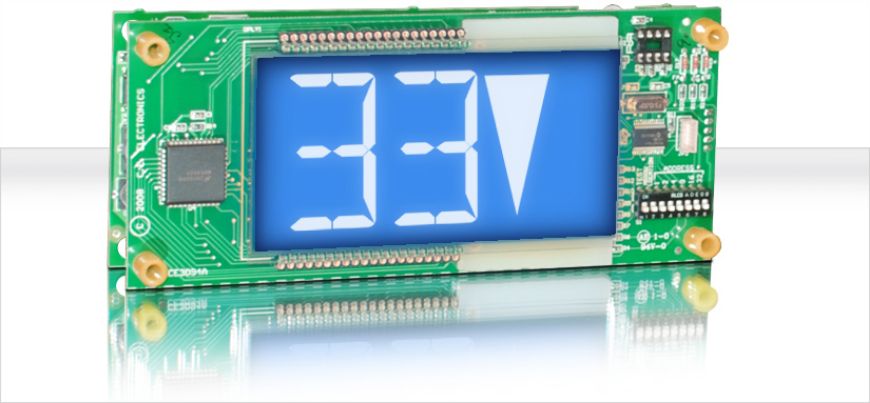

Picture of 1.5” Double Character / Dual Arrow

1.5” Double Character / Dual Arrow

Blue Liquid Crystal Segmented Display
SKU: OB215
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Blue Liquid Crystal Display indicator with dual digits and arrow for floor position as well as car direction. Any alphanumeric character and up/down arrows can be displayed in either single or double-digit floor designations.

Documentation:

Typical Applications:

> Car-OP Panel
> Transom
> Car and hall fixtures

Features:

> Long-life LED backlighting
> Fast, 4-wire hookup
> Self-testing
> Alternate message
> Passing chime output
> Error detection and correction feature
> Otis 411 car data link hook up
> No R55 card needed
> Deep blue crystal with white back light

Dimensions:

> 6.50"W x 2.70"H x 1.625"D     |     1.5" LCD DISPLAY

Notes:

Otis car data link interface electronic 411-style controls
