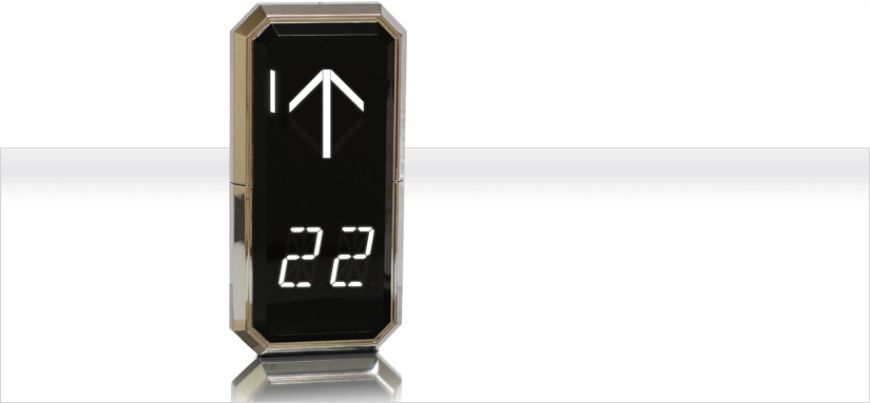

2" Double Character / 3” Independent Direction Arrow

Contained in the Classic metal fixture / Vertical with side bars

GTCV

2" Double Character / 3” Independent Direction Arrow

Contained in the Classic metal fixture / Vertical with side bars

SKU: GTCV

Colors Available

Qty:

Long life, solid state bi-color arrow for lanterns, 100,000 hour rated life. Accepts existing signals over the Otis serial RSL link. The unit has a double-digit 2" display. It includes a bi-color arrow which is green in the up direction and red in the down or solid blue, green, or white arrows with matching side bars for 180° viewing. The unit is also equipped with an arrival gong.

Documentation:

Typical Applications:

> Hall and car lanterns
> P.I. combo with 180° viewing angle

Features:

> Bi-color red & green 3" arrow with bi-color side bars or solid blue or solid white or solid green 3" arrow with solid side bar
> 2" characters in red, blue, white, or green color
> 180° viewing angle lantern
> 1-year factory warranty
> Conforms to ADAAG 4.10.4
> Includes gong

Dimensions:

> 6.00"W x 12.00"H x 1.5" D | 2" CHARACTERS | 3.0" ARROW
