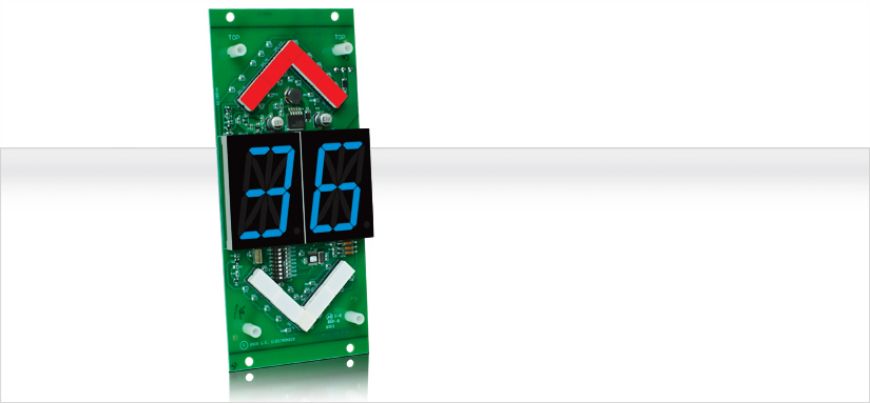

Picture of 2.2" Double Character / Dual Direction Arrows

2.2" Double Character / Dual Direction Arrows

Top and Bottom Stacked Arrow Orientation / Vertical Board / Micro Comm Segmented PI
SKU: MV22S

Segmented LED, digital indicator for floor position displays, as well as car direction. Any alphanumeric character can be displayed in either single or double-digit floor designations.

Documentation:

Typical Applications:

> Car-OP Panel

> Transom-car or Hall

> Deep surface mount fixtures

Features:

> Fast, 3-wire hookup

> Latched inputs

> Cross wire protected

> Self-testing

> Alternate message

> Passing shime output

> Error detection and correction feature

Dimensions:

> 3.875"W x 8.90"H x 1.625"  |  2.2" CHARACTERS

Notes:

1. This is not a stand-alone unit. Must be used in conjunction with a MICRO COMM® interface.
SPECIAL ORDER - 4-WEEK LEAD TIME MAY APPLY.
