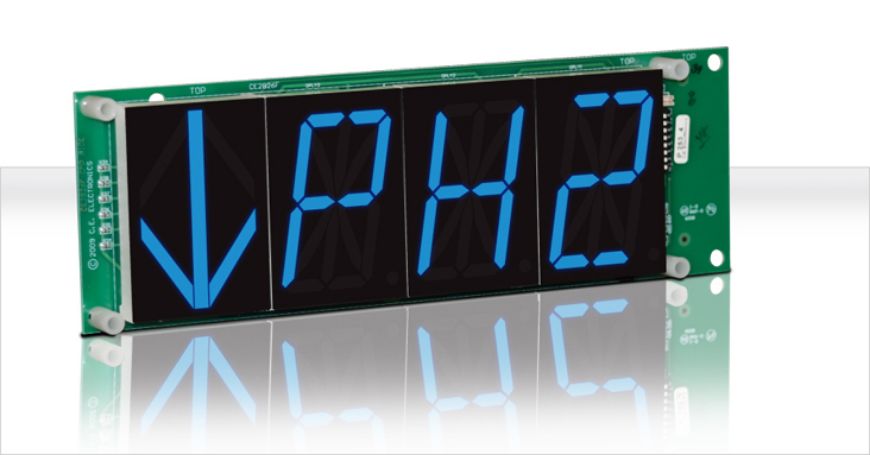

Picture of 2.2" Triple Character / 2.5” Independent Direction Arrow

2.2" Triple Character / 2.5” Independent Direction Arrow

Horizontal Board / Micro Comm Segmented PI
SKU: MH422

Segmented LED, digital indicator for floor position display, as well as car direction. Any alphanumeric character can be displayed up to three digits of floor designations.

Documentation:

Typical Applications:

> Car-OP Panel
> Transom-car or Hall

Features:

> Latched inputs
> Cross wire protected
> Self Testing
> Alternate Message
> Passing chime output
> Error detection and correction feature



Dimensions:

> 9.41"W x 3.1"H x 1.75"D   |   2.2" CHARACTERS   |   2.5" ARROW

Notes:

1. This is not a stand-alone unit. Must be used in conjunction with a MICRO COMM interface.
