3" LED Direction ARROW

side arrows / with lens
ASB30

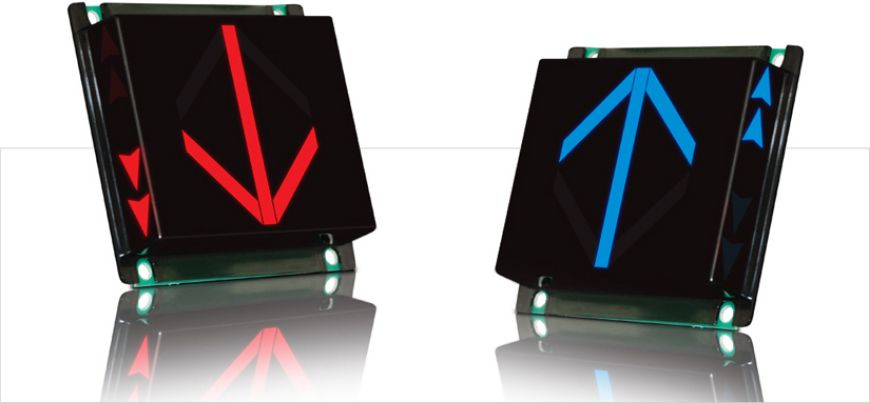

3" LED Direction ARROW

side arrows / with lens
SKU: ASB30

Long life, solid state bi-color or blue arrow for lanterns, 100,000 hour rated life. Accepts signals from 18 to 130 volts, AC or DC. The bi-color arrow is green for up and red for down. We also have white or blue up and down with matching side bars for 180° viewing.



Typical Applications:

Hall or car lanterns with 180° viewing angle

Features:

Ultra-thin packaging

Red down/green up, solid blue or solid white 3" arrow

Fast, 3-wire hookup

1-year factory warranty

Conforms to ADAAG 4.10.4

180° viewing angle

Solid side bar/arrow

Dimensions:

4.465"W x 4.10"H x 1"D (Discrete) / 1.5"D (MICRO COMM)
