3" LED Direction ARROW

side bars / with lens / -24/-30VDC
OAHE-FX
Otis Directional and Arrival Lanterns;
Speak to a Rep Speak to a Rep
Find Specs Find Specs

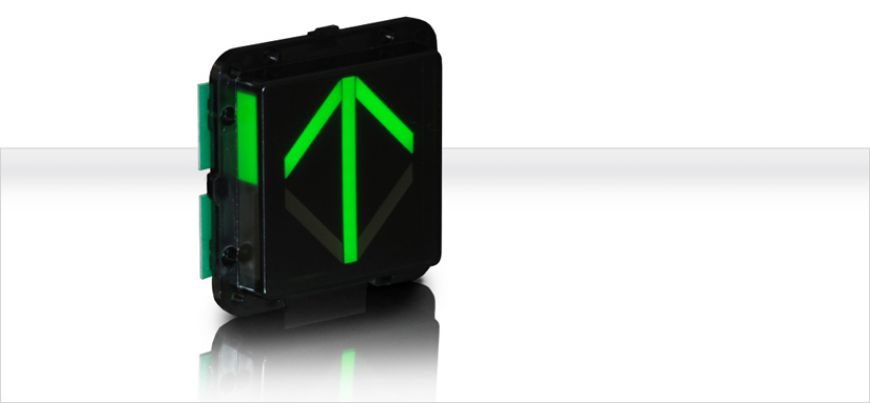

Picture of 3" LED Direction ARROW

3" LED Direction ARROW

side bars / with lens / -24/-30VDC
SKU: OAHE-FX
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Long life, solid state bi-color or blue arrow for lanterns, 100,000 hour rated life. Accepts existing signals within the standard Otis range. The bi-color arrow is green for up and red for down or optional solid blue with matching side bars for 180° viewing.

Documentation:

Typical Applications:

> Hall and car lanterns with 180° viewing angle. For Otis advance series style fixtures, horizontal or vertical mounting.

Features:

> Otis advance series mounting

> Ultra-thin packaging

> Bi-color or Solid Blue

> Red down/green up

> Solid side bar/arrow - Bi-color or Solid Blue

> 180° viewing angle

> 1-year factory warranty

> Conforms to ADAAG 4.10.4

> Includes gong

Dimensions:

> 114.3mm W x 78.74mm H x 32mm D  |  3.0" Arrow

Notes:

Can be used on M2 flush as well.
