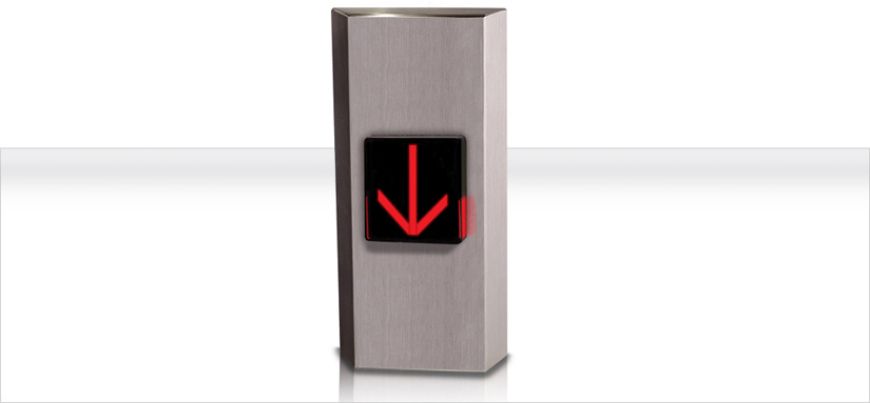

3” Single Independent Direction Arrow

Contained in a standard metal fixture / Vertical with side bars
MV911

3” Single Independent Direction Arrow

Contained in a standard metal fixture / Vertical with side bars
SKU: MV911
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Long life, solid state bi-color or blue arrow for lanterns. Accepts MICRO COMM 3-wire. The bi-color arrow is green for up and red for down or blue up and down or white up and down.

Typical Applications:

> Hall or car lanterns
> P.I. combo with 180° viewing angle

Features:

> Ultra-thin packaging
> Red down/green up or solid blue or solid white
> Fast MICRO COMM 3-wire hookup
> Conforms to ADAAG 4.10.4
> Jamb mountable (Vertical style only)

Dimensions:

> BOARD: 3.50"W x 7.50"H  |  DISPLAY: 3.585"W x 3.585"H - 3.0 inch LED Extended Arrow

Notes:

> 1.375 inch minimum depth of unit
