3” Single Independent Direction Arrow

Contained in a standard metal fixture / Horizontal / OTIS RSL

OH911

3” Single Independent Direction Arrow

Contained in a standard metal fixture / Horizontal / OTIS RSL

SKU: OH911

Colors Available

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

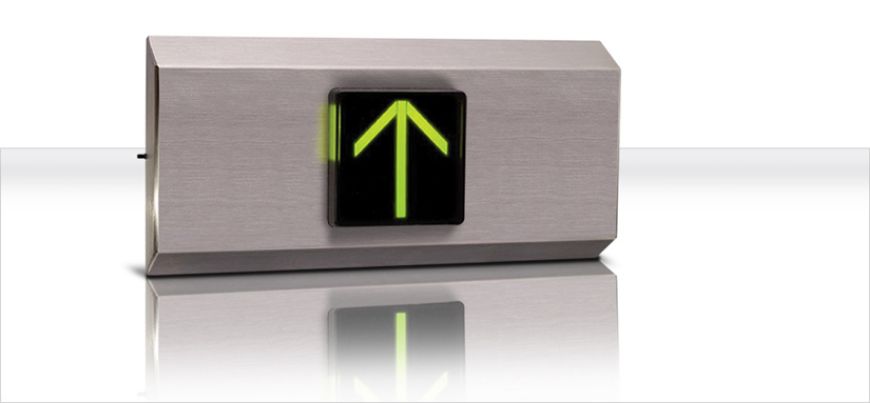

Long life, solid state bi-color, white or blue arrow for lanterns, 100,000 hour rated life. Accepts existing signals over the Otis RSL link. It includes a bi-color arrow which is green in the up direction and red in the down with matching side bars for 180° viewing. The unit is also equipped with an arrival gong. The programming is dip switch selectable.

Documentation:

Typical Applications:

> Hall and car lanterns
> P.I. combo with 180° viewing angle

Features:

> Bi-color, solid white or solid blue 3-inch arrow
> 2-inch characters
> Solid side bar/arrow
> 180° viewing angle lantern
> 1-year factory warranty
> Confroms to ADAAG 4.10.4
> Includes gong
> RSL input
> ECA capable

Dimensions:

> 8.00"W x 3.10"H x 1.375" D (minimum) | 3.0" ARROW

Notes:

> 1.375 inch minimum depth of unit.
