3" - Triple Character

Horizontal Board / DOT Matrix Indicator

DH330

3" - Triple Character

Horizontal Board / DOT Matrix Indicator

SKU: DH330

Colors Available

Qty:

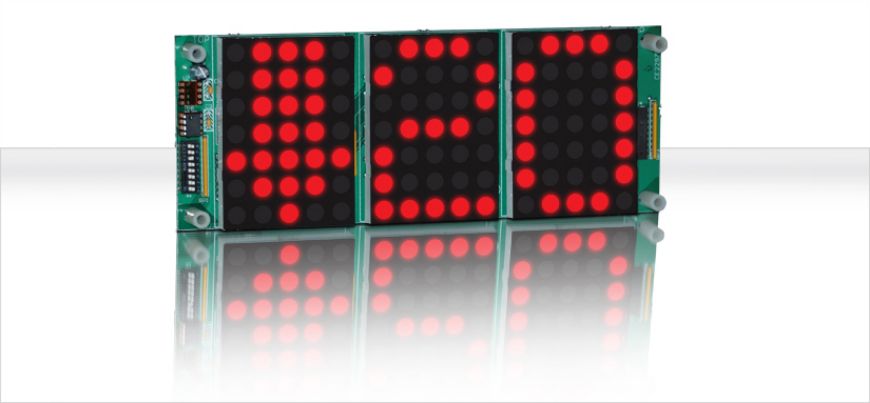

Dot Matrix LED digital indicator for floor position display, as well as car direction, if desired. Any alphanumeric or custom character can be displayed in either single digit with seperate "UP" and "DOWN" arrows. Double digit with single "UP/DOWN" arrow, or triple digit floor designations.

Documentation:

Catalog Page
Wiring Diagram Discrete
Wiring Diagram Micro Comm
E-Flyer

Typical Applications:

> Car-OP Panel

> Transom-car or Hall

Features:

> Low cost design

> Self contained unit

> Latched input

> Self Testing

> Scrolling

> Passing chime output

> Error detection and correction feature

> UL listed

Dimensions:

> 8.50"W x 3.20"H x 2.60"D

Notes:

1. If a special voltage is required, please consult factory.

2. *110VAC not required for power supply on MICRO COMM units.
