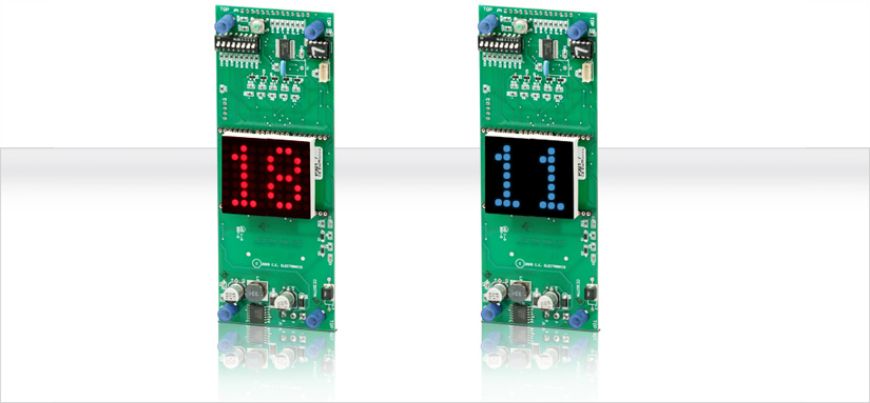

30mm Double Character

Vertical Board / European / DOT Matrix Indicator

EV210

30mm Double Character

Vertical Board / European / DOT Matrix Indicator

SKU: EV210

Colors Available

Qty:

Dot Matrix LED Digital Indicator for floor position display, as well as car direction, if desired. Any alphanumeric or custom character can be displayed in either single digit with arrow or double digit floor designations.

Documentation:

Catalog Page
Wiring Diagram Discrete
Wiring Diagram Micro Comm
E-Flyer

Typical Applications:

> Car-OP Panel

> Transom-car or Hall

Features:

> Low-cost design

> Self-contained unit

> Latched input

> Scrolling & roll over

> Hall lantern option

> Passing chime output

> Self Testing

> Message inputs

> Error detection and correction feature

Dimensions:

> 60mm W x 160mm H x 44.5mm D | 2.362"W x 6.299"H x 1.75"D

Notes:

1. If a special voltage is required, please consult the factory.

2. A supply of 1-24VAC/DC positive or negative is also required.

3. *This is not a stand-alone unit. Must be used in conjunction with a Micro Comm interface.
