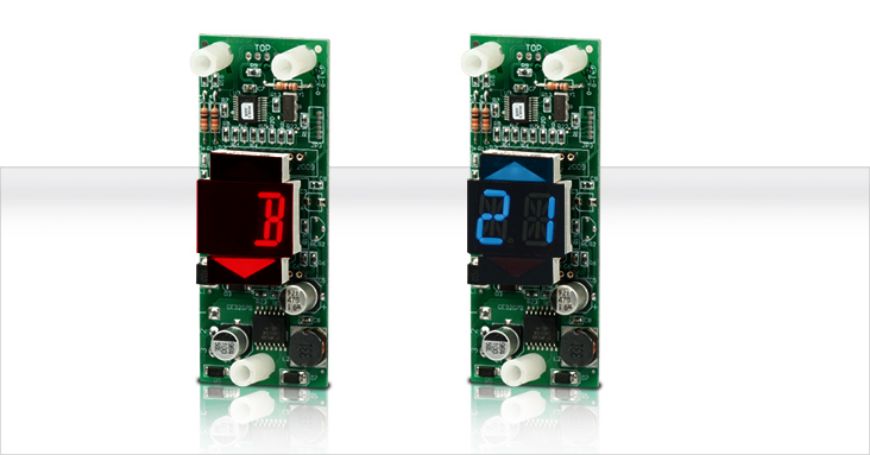

Picture of .5" Double Character / Dual Direction Arrows

.5" Double Character / Dual Direction Arrows

Top and Bottom Stacked Arrow Orientation / Vertical Board / Micro Comm Segmented PI
SKU: MV105

Segmented LED, digital indicator for floor position display, as well as car direction. Any alphanumeric character can be displayed in either single or double-digit designations.

Documentation:

Typical Applications:

> Hall stations
> Lobby and security panels

Features:

> Fast, 3-wire hookup
> Latched inputs
> Cross wire protected
> Self-testing
> Alternate message
> Passing chime not available on this unit
> Error detection and correction feature

Dimensions:

> Flush Mount Application: 1.40"W x 3.60"H x 1.60"D
> Surface Mount Application: 1.40"W x 3.60"H x .625"D

Notes:

1. This is not a stand-alone unit. Must be used in conjunction with a MICRO COMM interface.
