DOT MATRIX LED DIGITAL INDICATOR

Typical Applications:

> Direct replacement for Westinghouse Syncrodial units

Features:

> Low-cost design

> Latched input

> Scrolling & roll over

> Hall lantern option

> Passing shime output

> Self Testing

> Message inputs

> Error detection and correction feature

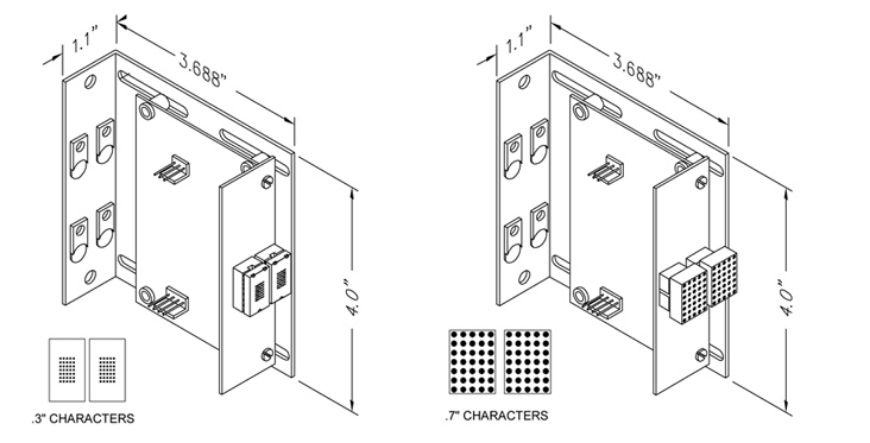

Dimensions:

> MR103-X | 1.1"W x 4.0"H x 3.688"D | .3" Characters

> MR107-X | 1.1"W x 4.0"H x 3.688"D | .7 Characters

Notes:

1. This is not a stand-alone unit. Must be used in conjunction with a MCCU controller.

2. Only three hoist wires required from "CCU" to "RDI".

3. Pluggable terminal block with 8' cable supplied.
