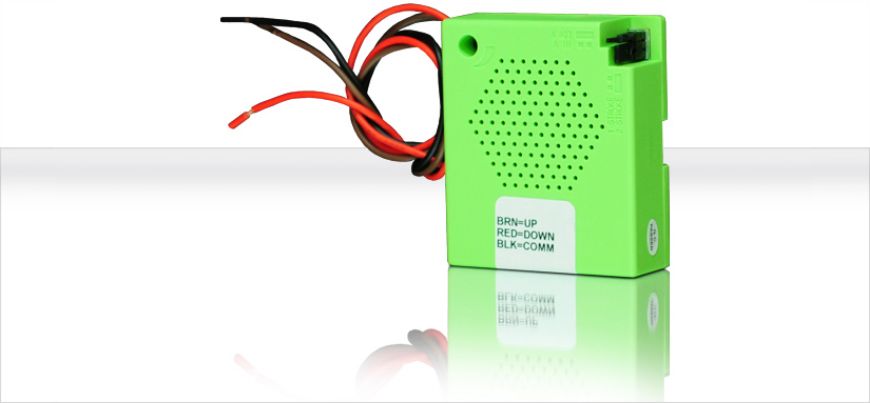

ELECTRONIC HANDICAP CHIME/GONG

DISCRETE

SG0MV

ELECTRONIC HANDICAP CHIME/GONG

DISCRETE

SKU: SG0MV

Qty:

Highly reliable, solid-state chime for lanterns. Adjustable volume for varied environments, and ambient noise levels. The gong rings once for up and twice for down. It features a removable jumper to select the up and down configuration.

Documentation:

Catalog Page
E-Flyer

Typical Applications:

> Arrival chime

Features:

> Adjustable volume

> Compact design

> 1-year factory warranty

> 100+ decibels rating

> Conforms to ADAAG 4.10.4

> Fast 3M Scotchmate fastening

> 24V to 120 V AC/DC +/-

> Dual or Single Stroke Available and Field Selectable

> High / Low Voltage Available and Field Selectable

> Low Works on Full Range 24-120 Volt + or -

> High Works from 60-120 AC/DC + or - used to Block Stray Voltage in Noisy Environment

Dimensions:

> 2.384"W x 2.784H x .895"D | 60.5mm W x 70.7mm H x 22.7mm D

Notes:

If a special voltage is required, please consult factory.
