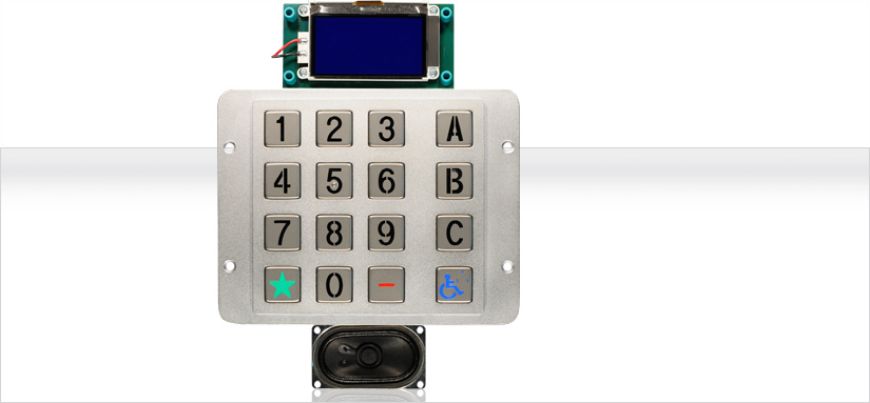

The keypad is part of our Elite Touch® product line to maintain code compliance where pushbuttons are still necessary, as well as provide a back up in the event the touchscreens are out of service.
> Car Operating Panel
> Stainless Steel keys
> 16mm high characters
> 8 ohm Speaker
> Overall: 7.5625"W x 9.75"H x 1.50"D
___Display: 4.3125"W x 2.25"H x 1.50"D
___Keypad: 7.5625"W x 5.875"H x 1.50"D
___Speaker: 2.875"W x 1.625"H x 1.50"D
> Maximum distance from keypad for display and speaker is 10 inches
> For use with Elite Touch units
> Power Supply #40102412 with Bracket #70000280 is recommended
> Templates available for specific mounting dimensions* If using CIB-O no Power Supply is required or if 24VDC is available in the COP no Power Supply is required.
