MICRO CAB CAMERA

C25100001
Security;
Speak to a Rep Speak to a Rep
Find Specs Find Specs

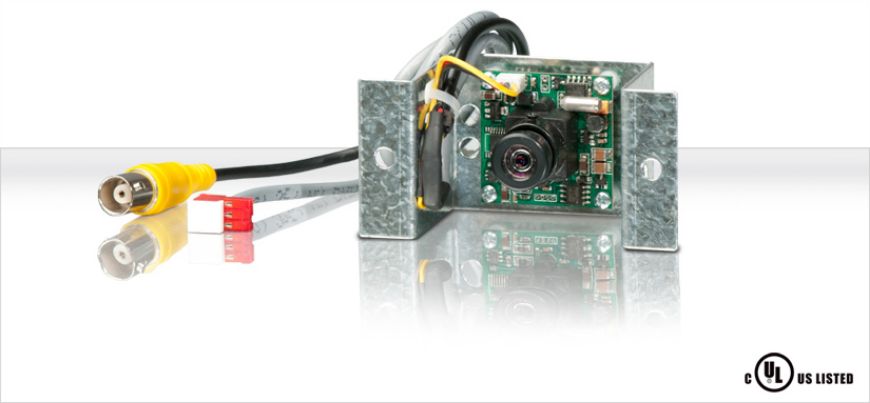

Picture of MICRO CAB CAMERA

MICRO CAB CAMERA

SKU: C25100001

The Elite color security camera was designed to be mounted in the elevator is compact format powered from the Elite PI. It is intended to be used as part of the CE Elite Security System.

Documentation:

Features:

> Mini Analog Color Camera
> Hi Resolutions: 380 Lines
> Lux Rating: 1.0 Lux
> S/N Ratio: >48db
> FOV (Field of View): 90°
> Mount below Car PI and no more than 6 feet above floor
> Lens: 3.6mm Fixed
> Output: Male BNC Connector
> Signal System: PAL/NTSC
> Effective Pixels:
____512 x 582 PAL
____512 x 492 NTSC
> Power Consumption: About 11ma
> Power Input: Elite PI Interface
> Operating Temp: -20°C to +55°C
> Mount below Car PI in COP or swing below 6'

Dimensions:

> 3.0"W x 1.5"H x 1.5"D
